Isivamvo socango oluzenzekelayo

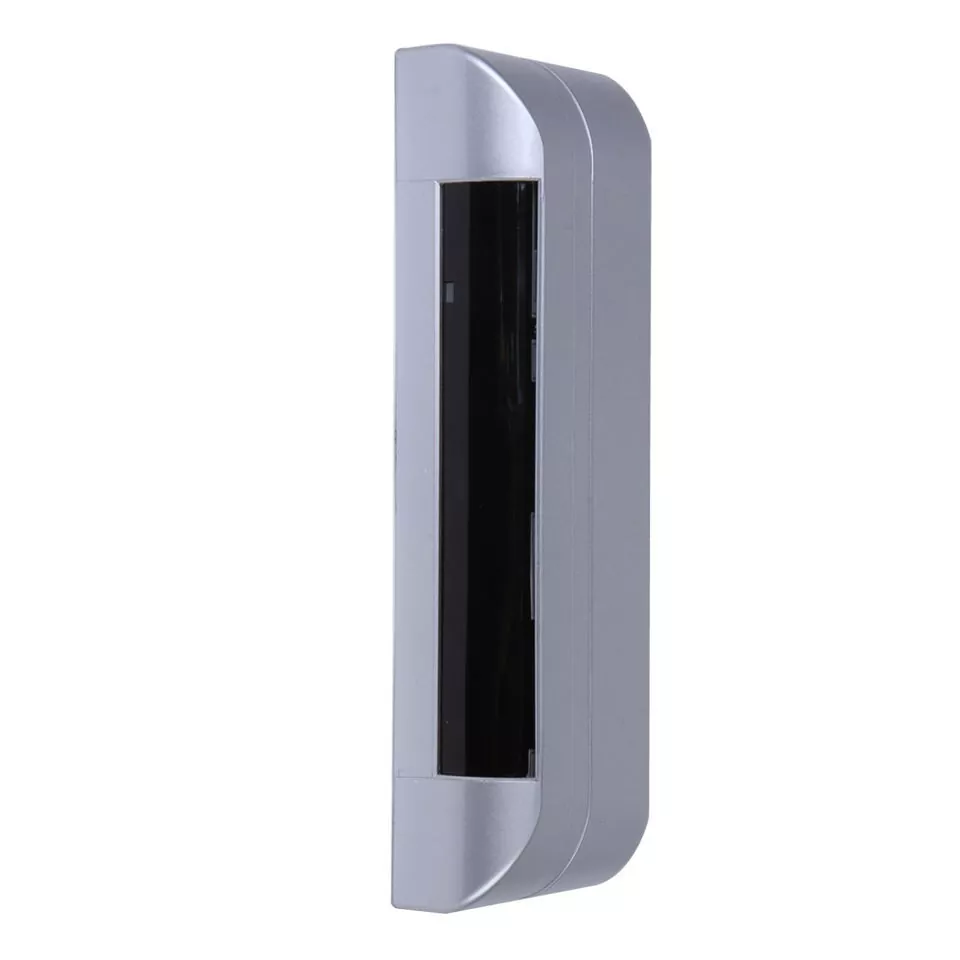

I-IS01 sisivamvo socango oluzenzekelayo olusebenzisa itekhnoloji yokubona intshukumo esebenzayo ebonakalisa infrared. Esi sivamvo sikhethekileyo sisebenzisa itekhnoloji ye-infrared esebenzayo (IR) ukubona intshukumo kwaye iqalise ukusebenza kocango oluzenzekelayo. Ijonga utshintsho lobushushu ngaphakathi kwendawo yokuva. Nanini na xa umntu okanye into isondela emnyango, inzwa ithatha umqondiso wobushushu, ibonise ngokukhawuleza ucango oluzenzekelayo ukuba luvuleke.

Thumela uMbuzo

Ingcaciso yeMveliso

I-IS01 sisixhobo sokubona intshukumo ekhanyayo ye-infrared kucango oluzenzekelayo Esi sivamvo sikhethekileyo sisebenzisa iteknoloji ye-infrared (esebenzayo ye-IR) ukubona intshukumo kwaye ivule ucango oluzenzekelayo. Ihlola utshintsho lobushushu kwindawo yokuva. Xa umntu okanye into isiya ngasemnyango, isignali yobushushu ibonwa sisiva, nto leyo eya kubonisa ucango ukuba luvuleke ngoko nangoko.

Xa kuthelekiswa nesivamvo se-radar, uluhlu lokubona isivamvo se-infrared lumxinwa kwaye luchanekile, yeyona ndlela ilungileyo yokuvula isivamvo se-microwave kwiingcango zangaphambili zesitrato kunye nokuhamba komkhweli omkhulu. Ummandla wayo wokuhlola olungelelaniswe ngokuchanekileyo unokunqanda ukubhaqwa okungeyomfuneko kwindlela yokudlula engafanelekanga.

Iimpawu zobuchwephesha benzwa ye-infrared yocango oluzenzekelayo:

Uhlobo lweRay	Ukubonakaliswa kwe-infrared
Ubuninzi beRay	Ezisi-8 zikhupha imitha kwaye ezisi-8 zifumana imitha
Uhlobo loMsebenzi	Khangela into ehambayo (abantu)
Max. Ukufakela Ubude	3m
Uvakalelo Ukulungelelanisa	Uvakalelo ukulungisa kakuhle

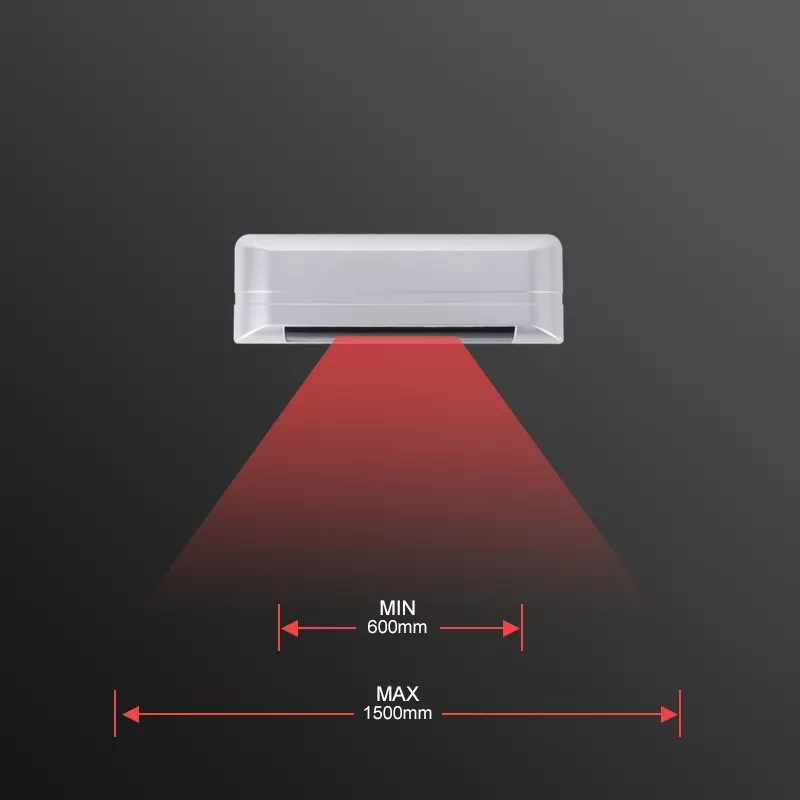

Ulungelelwaniso lweNdawo yokuHlola	Ukulungelelanisa i-engile yesibonisi 0 ° ~ 10 °
Ulungelelwaniso lweNdawo yokuHlola	Uhlengahlengiso ngokutshintsha kweDIP
Amandla	AC/DC12-36V±5%
Umthamo wokusebenzisa	Ngaphantsi kwe-2.5VA
Relay Output	DC50V,0.1A
Isiphumo Ukugcina Ixesha	2s
Isalathiso sePhumo	Imo elindileyo enokukhanya okuluhlaza, umqondiso yamkela ngesibane esibomvu
AMB / ENT Ubushushu	-20ºC~+60ºC
Ubunzima	400g

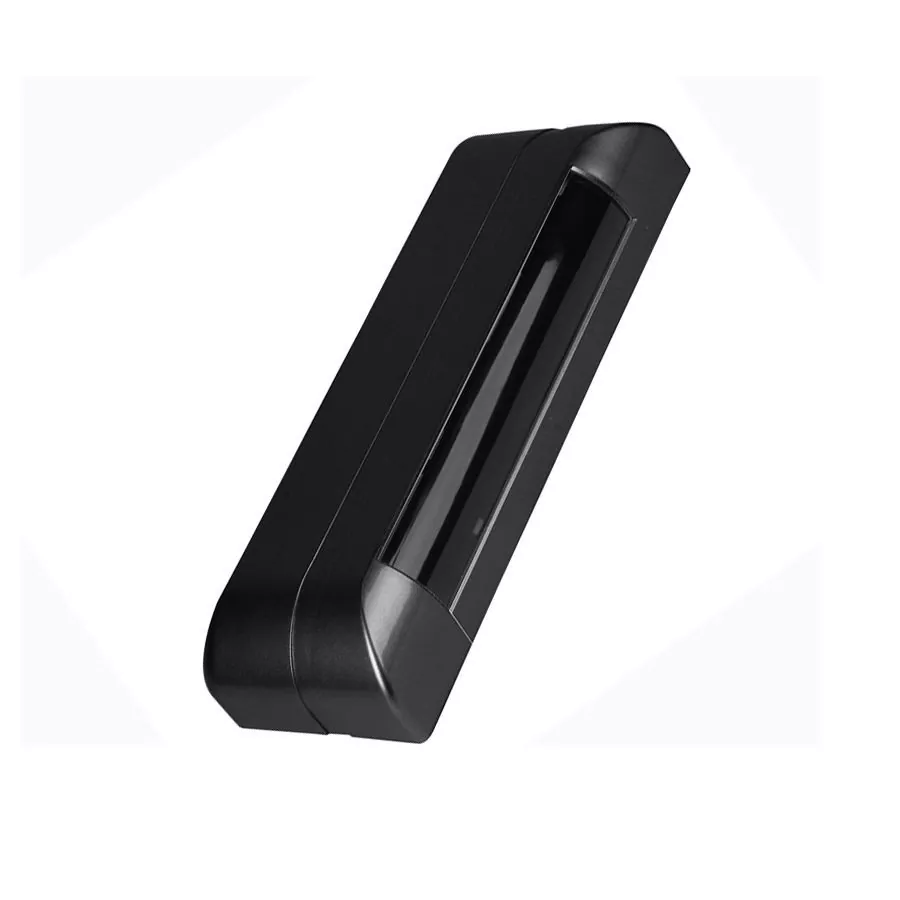

Umbala	Isilivere, emnyama
Izincedisi	Intambo ethambileyo ye-2..5m, i-screws yokufaka iziqwenga ezi-2, ukufaka iphepha, imiyalelo yesandla

Uluhlu lokupakisha isivamvo se-infrared socango oluzenzekelayo

Isaziso sokuFakela

1.Nceda ufake ngaphakathi kwe-3m, okanye ukuqonda ukufumanisa kuya kuncitshiswa.

2.Nceda ungafaki izinto ezinje ngomkhusane, iintyatyambo kunye nemithi ekulula ukuzijingisa kwindawo yokubhaqa, kungenjalo kuya kubangela ukunyakaza kwempazamo.

3.Nceda ungabeki indawo apho ihlaselwe ngumphunga okanye inkungu yeoyile. Kungenjalo kunokubangela isenzo sempazamo.

4.Nangona imveliso inomsebenzi wokuchasana nokuphazamiseka. Kwimeko kwindawo ekufutshane kufuneka kufakwe iiseti ezingaphezu kwe-3, kunokwenzeka ukuba kwenzeke isenzo sempazamo ngenxa yokuphazamiseka. Ngoko nceda uqinisekise indawo yokufakela efanelekileyo okanye usicele inkxaso yobugcisa.

5.Nceda ungayibeki kwindawo apho ukukhanya okukhanyayo okufana nokukhanya kwelanga kunokufikelela kwiilensi zokubona, kungenjalo kunokubangela impazamo. Izinto ezingaphantsi komhlaba ziyi-marble kunye ne-aluminium njl.

Impazamo eqhelekileyo yesivamvo se-infrared emnyango

I-Phnomena	Unobangela	Ukuphatha
Akukho senzo	Akukho qhagamshelwano lwentambo	Nceda uqinisekise ukuba intambo iqhagamshelwe
Akukho senzo	Amandla okanye amandla ombane	Nceda usebenzise amandla asemgangathweni (AC/DC12-36V)
Ngamanye amaxesha Ayisebenzi	Ilensi yokubona yangcoliswa luthuli okanye ithontsi lamanzi. Ke ngoko ukuba nengqondo yobhaqo kuncitshisiwe.	Coca ngelaphu elithambileyo kwaye ulungelelanise uvakalelo olucokisekileyo ukuya kuH
Ngamanye amaxesha Ayisebenzi	Uluhlu lokuchongwa alulunganga	Lungisa i-oblique yomzimba we-detector
	Swinging into ngaphakathi kuluhlu lokubhaqa	Lungisa uluhlu lobhaqo okanye ususe into ejingi.
Isenzo semposiso	Ukuhambisa abantu phakathi koluhlu lobhaqo	Nceda ulungise kwakhona iswitshi ye-DIP, okanye ulungise i-oblique ye-detector body.
Isenzo semposiso	Ubuthathaka kakhulu	Lungisa i-DIP AWITCH kwindawo ye-ON kwaye ulungelelanise uvakalelo olucokisekileyo ukuya kwindawo ye-L

Izivamvo eziNgenzekayo zokuSebenza ziyafumaneka:

INTO	Inkcazo
MS01	Isivamvo seMicrowave (10GHZ/24GHZ) Amandla: AC / DC 12 ~ 36V Ubuninzi berediyo: 10.525GHZ/24.125GHZ Inqanaba lokhuseleko: IP52 Ubungakanani: 131×61×46mm(L×W×H) Ubude bofakelo oluphezulu: 4M Uluhlu lokufumanisa kunye nokuqonda kunokulungiswa.
MS02	Isivamvo seMicrowave (24GHZ) Amandla: AC / DC 12 ~ 36V Ubuninzi berediyo: 24.125GHZ Inqanaba lokhuseleko: IP52 Ubungakanani:140×46×45mm(L×W×H) Ubude bofakelo oluphezulu: 4M Uluhlu lokufumanisa kunye nokuqonda kunokulungiswa.
MS03	Isivamvo seMicrowave(24GHZ) Amandla: AC / DC 12 ~ 36V Ubuninzi berediyo: 24.125GHZ Inqanaba lokhuseleko: IP52 Ubungakanani:121×80×51mm(L×W×H) Ubude bofakelo oluphezulu: 4M Uluhlu lokufumanisa kunye nokuqonda kunokulungiswa.
MS-204	Isivamvo seMicrowave(24GHZ) Amandla: AC/DC 12~30V±10% (50Hz ukuya ku-60Hz) Ubuninzi berediyo: 24.125GHZ Inqanaba lokhuseleko: IP52 Ubungakanani:150×50×38mm(L×W×H) Ubude bofakelo oluphezulu: 4M Uluhlu lokufumanisa kunye nokuqonda kunokulungiswa.
IS01	Isivamvo se-infrared Amandla: AC / DC 12 ~ 36V Umgama wokubona: 0.2m-2m Ubungakanani: 221×74×35mm(L×W×H) Ubukhulu bofakelo lobude: 3M Uluhlu lokufumanisa kunye nokuqonda kunokulungiswa. Imveliso ingasetyenziselwa kwimeko apho indawo yokwakha imxinwa kwaye isondele kwisitalato kunye nobuchule bokubona ukuchaneka bufunwa. Isivamvo sokubonwa komgama siyalungiseka, kunye nothintelo oluphezulu, umsebenzi olula nothembekileyo.
IS02	Idityanisiwe i-microwave&inzwa ye-infrared Amandla: AC/DC 12~36V Ukuhanjiswa rhoqo: 24.125GHZ Inqanaba lokhuseleko:IP54 Ubungakanani: 262×55×44mm(L×W×H) Ubukhulu bofakelo lobude: 3M Ukusebenza kwe-radar edibeneyo kunye ne-sensor yokhuseleko lwe-infrared isetyenziselwa ucango oluzenzekelayo lokutyibilika, ucango olusongayo kunye nomnyango we-curve. Itekhnoloji yerada yeyokuvula umnyango. Itekhnoloji ye-infrared yeyokungena kukhuseleko lomnyango. Uyilo lomsebenzi ochasene nekliphu ohlukileyo, akukho mfuneko yazinzwa zokhuseleko ezongezelelweyo. Yiba nomsebenzi wemvelaphi yokuzifundela ngokwakho. Inokufunda ngasemva ngokuzenzekelayo xa amandla elayitiwe. Ilungele zonke iintlobo zeziganeko. Ngalo lonke ixesha ukuzilungisa kube kanye kuchatshazelwa yinyikima, ukugqwetheka, ukushukuma, ubumnyama kunye nokukhanya kwelanga. Qinisekisa ukuba inzwa inokusebenza ixesha elide. Itekhnoloji yeMicrowave ithatha imodyuli ye-Microwave sensor yaseJamani, engaphenjelelwanga bubushushu kunye nokufuma ngokusebenza okuthembekileyo.
IS03	Intshukumo ye-infrared kunye neSensom yoKhuseleko loBukho Igalelo laMandla: AC/DC 12 24V(±10%) Ukuhanjiswa rhoqo: 24.125GHZ Inqanaba lokhuseleko:IP54 Ubungakanani: 229×67×41mm(L×W×H) Ubukhulu bofakelo lobude: 3M I-1.Isetyenziselwa ukuvula kunye nomsebenzi wokukhusela ukhuseleko lomnyango wokuguqulela. I-infrared sensing isetyenziselwa ukuqalisa kunye ne-anti clamping; 2.Unomsebenzi wemvelaphi uzifundele. Inokufunda ngasemva ngokuzenzekelayo xa amandla elayitiwe. Ilungele zonke iintlobo zeziganeko.Soloko ukuzilungisa kube kanye kuchatshazelwa yinyikima, ukugqwetheka, ukushukuma, ubumnyama kunye nelanga. Qinisekisa ukuba inzwa inokusebenza ixesha elide;
IS04	Intshukumo yeMicrowave kunye ne-Infrared Presence Sensor Igalelo laMandla: AC/DC 12~30V(±10%) Ukuhanjiswa rhoqo: 24.125GHZ Inqanaba lokhuseleko:IP44 Ubungakanani: 267.2×61.1×46mm(L×W×H) Ubude bofakelo oluphezulu: 3.5M I-1.Isetyenziselwa ucango oluzenzekelayo lwe-sliding, ucango olusongayo kunye ne-Curve door.I-teknoloji ye-Radar yeyokuvula umnyango.Iteknoloji ye-Infrared yeyokungena kukhuseleko lomnyango; 2.Unomsebenzi wemvelaphi uzifundele. Inokufunda ngasemva ngokuzenzekelayo xa amandla elayitiwe. Ilungele zonke iintlobo zeziganeko.Soloko ukuzilungisa kube kanye kuchatshazelwa yinyikima, ukugqwetheka, ukushukuma, ubumnyama kunye nelanga. Qinisekisa ukuba inzwa inokusebenza ixesha elide
V01	Intshukumo yeMicrowave kunye ne-Infrared Presence Sensor Igalelo laMandla: AC/DC 12~24V(±10%) Ukuhanjiswa rhoqo: 24.125GHZ Inqanaba lokhuseleko:IP44 Ubungakanani: 267×61×38mm(L×W×H) Ubude bofakelo oluphezulu: 3.5M I-1.Isetyenziselwa ucango oluzenzekelayo lwe-sliding, ucango olusongayo kunye ne-Curve door.I-Radar iteknoloji ye-activation yocango.Iteknoloji ye-Infrared yeyokungena kukhuseleko lomnyango. 2.Umsebenzi wokuziphilisa. Xa imeko yendawo ye-infrareddetecting itshintshile, inzwa iya kufunda imeko entsha njengemvelaphi entsha ngokwexesha lobukho.
